Product Description:

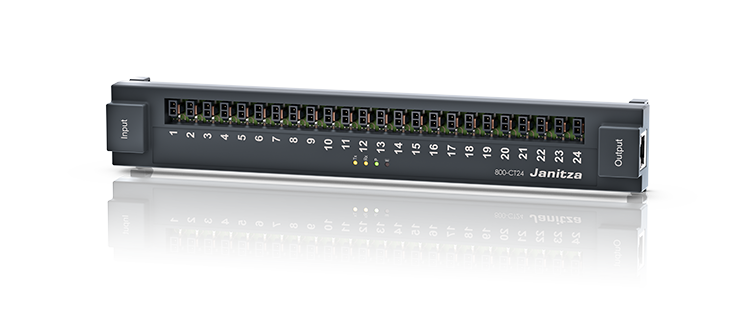

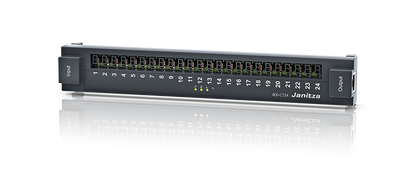

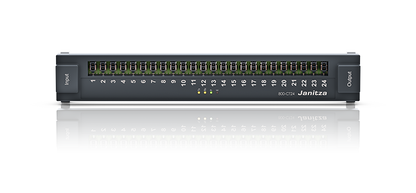

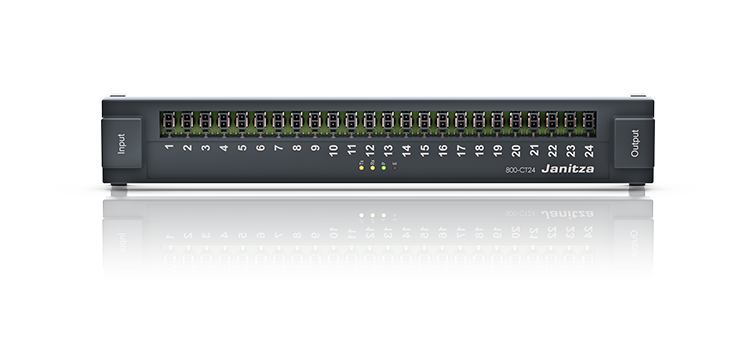

The 800-CT24 current measurement module is a module for connecting 24 low power (333mV) current transformers from the CT24-SC series (available in 50A, 75A, and 100A). This series of low power current transformers is equipped with a Molex connector, making them easy and quick to connect to this current measurement module. A maximum of 3 of these 800-CT24 current measurement modules can be connected to a UMG 800 series main module# to create an extensive measurement system for monitoring a complete installation.
The 800-CT24 module has 24 channels that can be freely assigned for single-phase, three-phase, and three-phase + neutral measurements. The module is ideal for measurements in sub-distribution boards (level 4) with currents up to a maximum of 100A. Each group can measure 1x 3f+n or 4x 1f. For interconnecting multiple modules (max. 4), a standard RJ45 Ethernet cable can be used. A standard RJ45 Ethernet cable is also required for connection to the main module, but this also requires the 800-CON-RJ45 communication module. The use of Ethernet cables allows for a distance of up to 100 meters.
Key Feartures
Key Feartures
Specifications
Specifications
Bulk order
MODULAR
Supplement new requirements with suitable modules
SPACE-SAVING
Compact basic device with 2 sub-units and expansion modules with 1-4 sub-units
COST-EFFICIENT
Start with just a few functions and expand cost-effectively if required
Energy Management System
Smart Software & Hardware Solutions

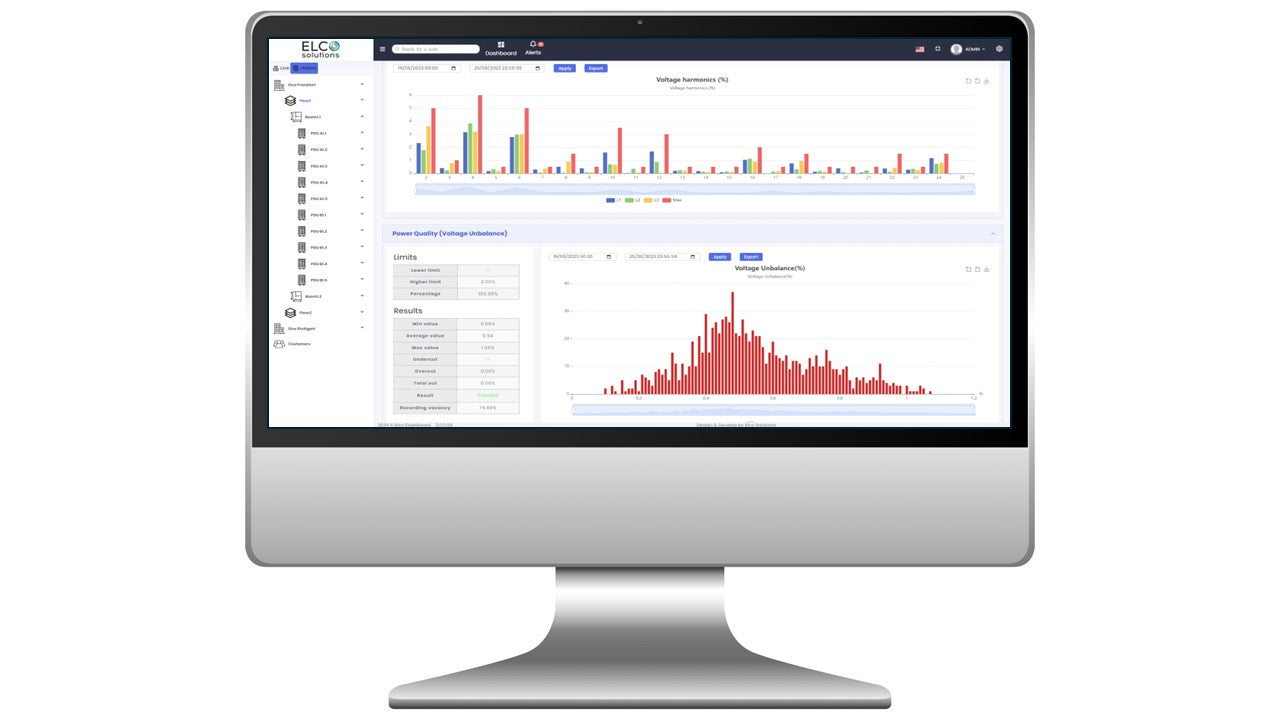

Welcome to Elco Solutions, your trusted partner in delivering advanced energy management solutions tailored to meet your business’s needs. With our innovative ElcoEMS software and cutting-edge energy management and power quality hardware in partnership with Janitza Electronics, we empower organizations across Europe to achieve greater energy efficiency, reduce operational costs, and meet the stringent European standards ISO 50001.
