Janitza

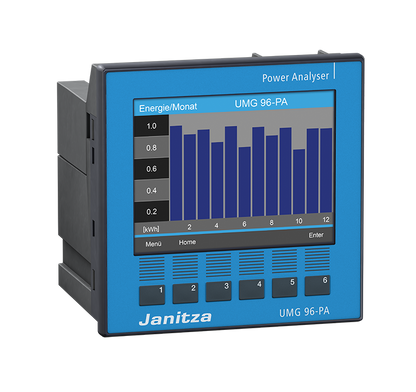

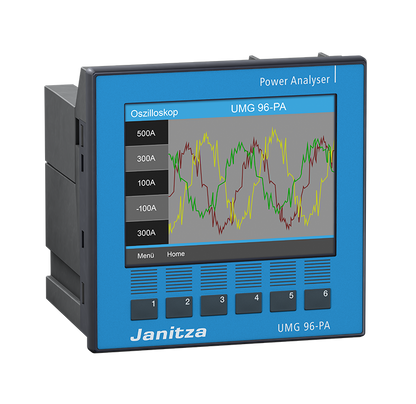

Expandable Modular Power Analyzer - UMG 96-PA

€487,60 EUR
€487,60 EUR
€487,60 EUR €565,25 EUR
Tax included. Shipping calculated at checkout.

💬 Need a better price for higher volumes? Contact us for a personalized offer!

Want next day delivery? Be quick!

I18n Error: Missing interpolation value "end_date" for "Ends on {{ end_date }}"
Up to 14% off

Product Description:

The Janitza UMG 96-PA is a highly capable and multifunctional energy meter designed for advanced monitoring and energy management. This compact device combines four essential functions into one unit: energy monitoring, MID-certified billing, power quality analysis, and residual current monitoring (RCM). With its 96x96 mm front panel and vibrant color display, the UMG 96-PA offers an exceptional blend of performance and usability within a compact footprint.

Whether you're measuring voltage and current in low or high voltage systems or analyzing harmonic distortion, the UMG 96-PA is a reliable solution for professionals managing complex electrical infrastructures.

Key Feartures

  • Space-Saving Format: Compact 96 x 96 mm size for easy integration
  • Wide Application Range: Ideal for use in low, medium, and high voltage systems

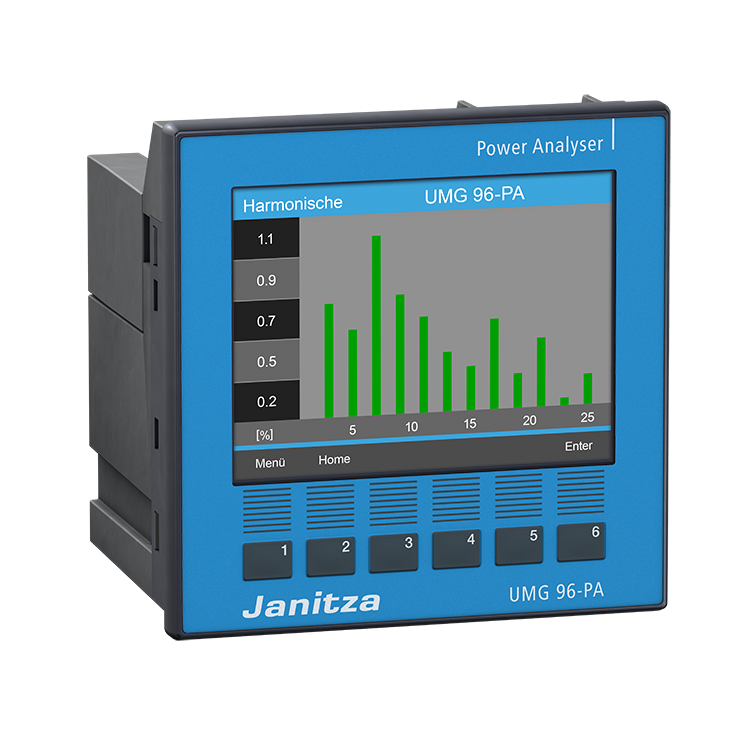

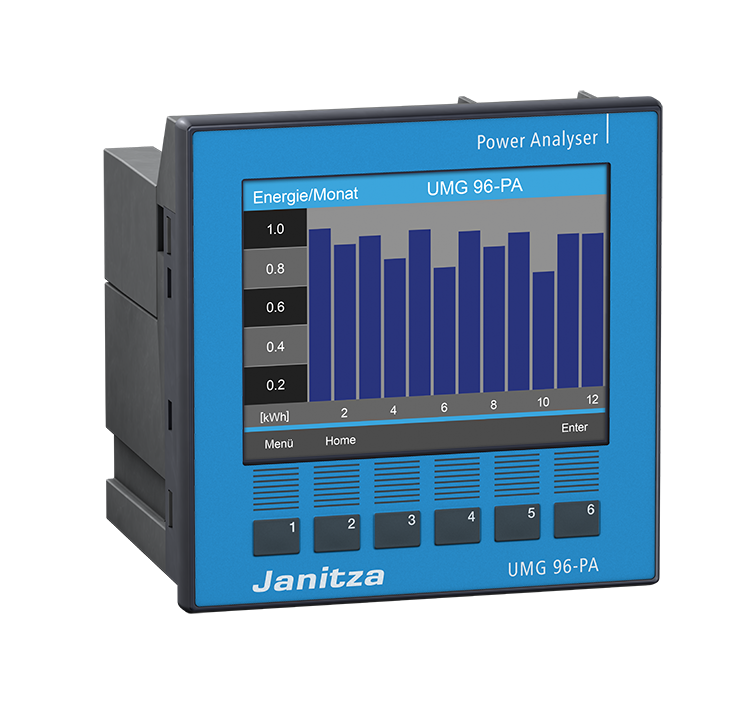

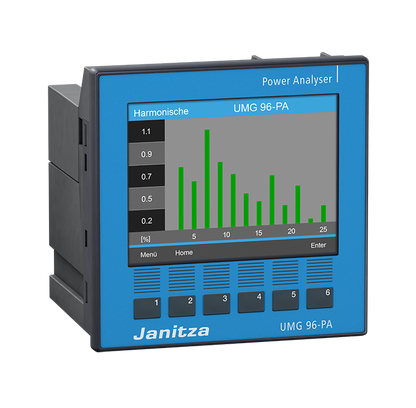

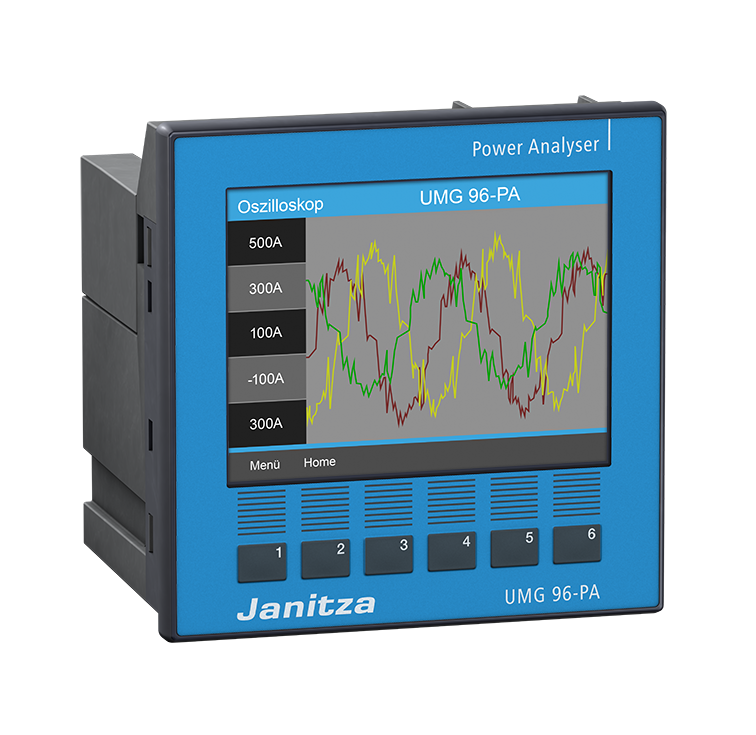

  • Intuitive Display: 320 x 240 pixel color screen with 6-button navigation
  • Robust Data Logging: 8 MB internal memory for storing measurement data
  • Communication Ready: Equipped with an RS-485 interface for data exchange
  • High Measurement Precision: Offers Class 0.2S or 0.5 accuracy for active energy, based on the current transformer used

Specifications


General Information
Net Weight (with connectors attached) Approx. 250 g
Memory
8 MB
Supply Voltage AC 24 V - 90 V (50/60 Hz)
or DC 24 V - 90 V, 150 V CATIII
Certifications UL Certified


Voltage measurement
Three-phase 4 conductor systems with rated volatges up to
417 V / 720 V (+-10%) according to IEC
347 V / 600 V (+-10%) according to UL
Single-phase 2 conductor systems with rated voltages up to
480 V (+-10%)
Overvoltage category
600 V CAT III
Resolution
0.01 V


Serial interface
RS485 - Modbus RTU/Slave
9.6 kbps, 19.2 kbps, 38.4 kbps, 57.6 kbps,
115.2 kbps


Expandable Modular Power Analyzer - UMG 96-PA

€487,60 EUR

Bulk order

Product Subtotal Quantity Price Subtotal
Expandable Modular Power Analyzer - UMG 96-PA
Expandable Modular Power Analyzer - UMG 96-PA
Expandable Modular Power Analyzer - UMG 96-PA
€565,25
€487,60/ea
 €0,00
€565,25
€487,60/ea
 €0,00
Icon Product-Modular white

MODULAR



MODULAR

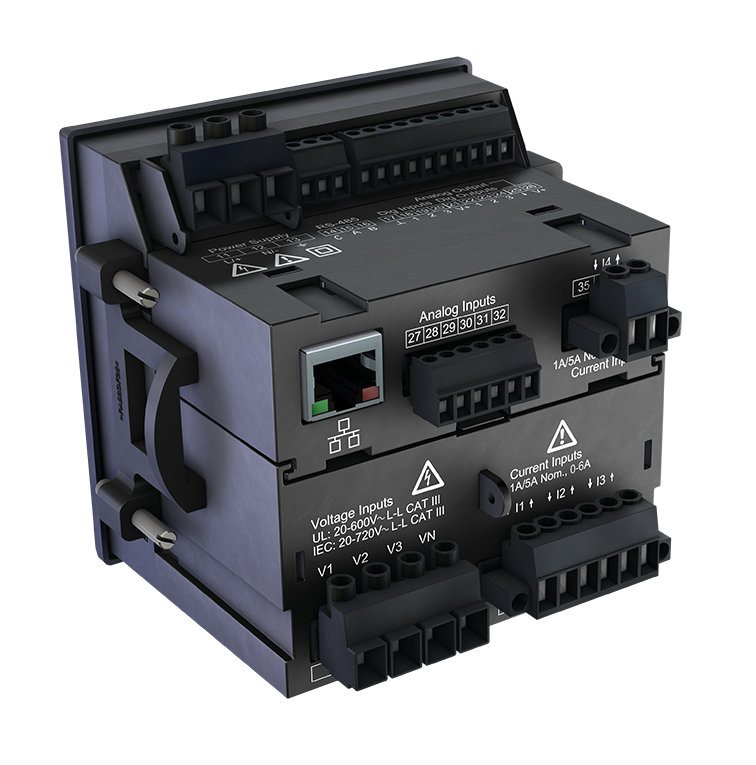

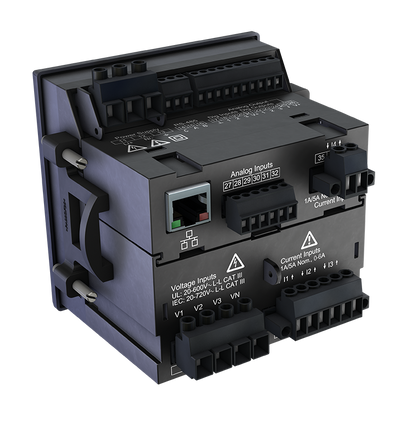

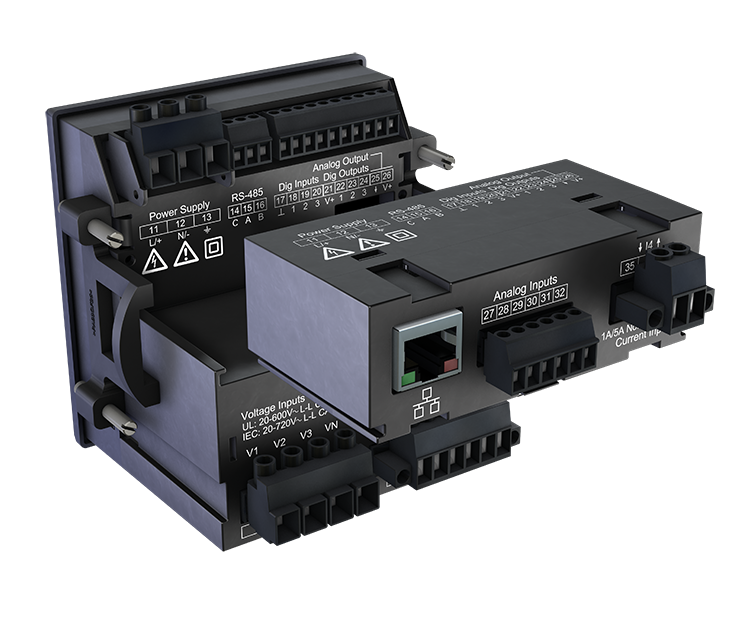

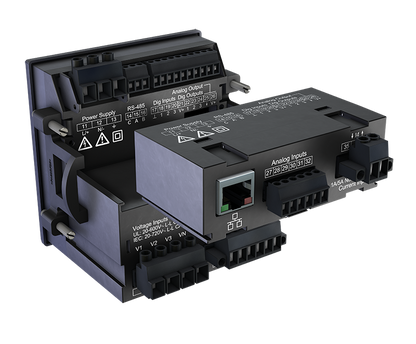

Supplement new requirements with suitable modules

Icon Product-Compact white

SPACE-SAVING

Compact basic device with 2 sub-units and expansion modules with 1-4 sub-units

Icon Savings white

COST-EFFICIENT

Start with just a few functions and expand cost-effectively if required
